Danish company Ortofon began life in 1918 as Electrical Phono Film Company largely concerned with synchronized sound recording at first with one machine for the film and a second for the sound run simultaneously. Eventually picture and sound were able to be put on the same film strip and following this was a whole host of innovations for the booming film industry after the second world war.

Ortofon became involved with improvements to the cutting heads used in the growing gramophone industry and in 1948 produced the world's first moving coil cartridge engineered with characteristics matching the quality of the cutterhead. With the growing popularity of the vinyl LP, Ortofon became increasingly specialized in the gramophone world. Innovation continued over the following decades in both vinyl cutting technology and cartridges for sound reproduction - including the world's first low mass very high compliance magnetic cartridge in 1981 and a high end integrated cartridge in 2011 that connects to the tonearm directly without the need for a headshell or headshell leads.

More recently Ortofon has embraced SLM manufacturing techniques for it's premium cartridges, and diversified further with Ortofon Microtech a B2B division for micro-engineered components.

Ortofon manufactures a wide range of superbly manufactured cartridges and record player related items at all price points. That three-quarters of cartridge sales are in the DJ business is testament to the consistency and quality of the manufacturing. The tiny dimensions of mechanical compoennts that are involved in cartridges mandates either extremely precise manufacturing or careful selection, grading and evaluation of a hand-assembled final product. With such a large range of products opportunities for standardization allows for easier upgrading.

Model:
Ortofon cartridges and products for vinyl records On Sale

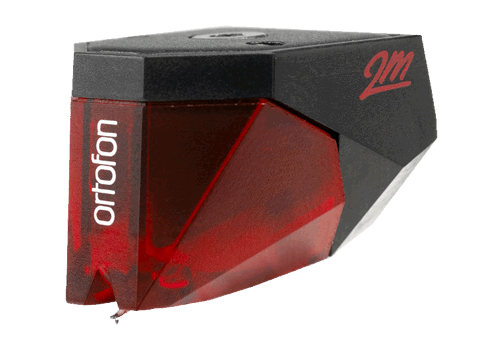

Ortofon 2M & 2MR Red Moving Magnet Cartridge

  • Ortofon's tried and true affordable modern high output MM cartridge with good all round performance and now available in lower profile version for turntables fitted with a Rega tonearm. A bottom mounting version is also available.
  • Frequency response from tipped elliptical stylus is 20-20,000 Hz (+3/-1dB) with 22/15dB @ 1kHz/15kHz channel separation and output of 5.5 mV (@ 1000 Hz, 5cm/sec)
  • Weight: 7.2g
  • Compliance: 20 µm/mN
  • Recommended tracking force: 1.8g
  •

Ortofon 2M & 2MR Blue Moving Magnet Cartridge

  • The nude elliptical stylus version of Ortofon's tried and true affordable modern high output MM cartridge has a crisper high end and is now available in lower profile version for turntables fitted with a Rega tonearm. A bottom mounting version is also available.
  • Frequency response is 20-20,000 Hz (+2/-1bB) with 25/15dB @ 1kHz/15kHz channel separation and output of 5.5 mV (@ 1000 Hz, 5cm/sec)
  • Weight: 7.2g
  • Compliance: 20 µm/mN
  • Recommended tracking force: 1.8g
  • Tipped elliptical stylus, modern high output design
  •

Ortofon 2M & 2MR Bronze Moving Magnet Cartridge

  • Achieves better tracking of complex passages from the nude 'Fine Line' stylus with extended high end. Better tracking reduces record wear. Lower profile for turntables fitted with a Rega tonearm and a bottom mounting versionare also available.
  • Frequency response is 20-20,000 Hz (+2/-0bB) with 26/15dB @ 1kHz/15kHz channel separation and output of 5.5 mV (@ 1000 Hz, 5cm/sec)
  • Weight: 7.2g
  • Compliance: 22 µm/mN
  • Recommended tracking force: 1.5g
  •

Ortofon 2M & 2MR Black Moving Magnet Cartridge

  • Features nude Shibata stylus profile for excellent high/low frequency balance and better tracking of complex passages. Better tracking reduces record wear. Lower profile for turntables fitted with a Rega tonearm and a bottom mounting versionare also available.
  • Frequency response is 20-20,000 Hz (+2/-0bB) with 26/15dB @ 1kHz/15kHz channel separation and output of 5.0 mV (@ 1000 Hz, 5cm/sec)
  • Weight: 7.2g
  • Compliance: 22 µm/mN
  • Recommended tracking force: 1.5g
  •

Ortofon 2M LWM 250 Black Moving Magnet Cartridge

  • A boron cantilever and Nano Tube suspension with Shibata stylus take this highest performing MM cartridge closer to MC territory while retaining the strengths of MM design
  • Frequency response is 20-20,000 Hz (+2/-1dB) with 27/15dB @ 1kHz/15kHz channel separation and output of 5.0 mV (@ 1000 Hz, 5cm/sec)
  • Weight: 7.2g
  • Compliance: 22 µm/mN
  • Recommended tracking force: 1.6g
  •

Ortofon 2M & 2MR Mono Moving Magnet Cartridge

  • Optimized performance for mono recordings with nude 18µ spherical stylus
  • Frequency response is 20-20,000 Hz (+3/-1bB) with output of 4 mV (@ 1000 Hz, 5cm/sec)
  • Weight: 7.2g
  • Compliance: 18 µ m/mN
  • Recommended tracking force: 1.8g
  •

Ortofon 2M 78 Moving Magnet Cartridge

  • Optimized performance for historic 78 rpm shellac records with nude 65µ spherical stylus
  • Frequency response is 20-20,000 Hz (+3/-1bB) with output of 4 mV (@ 1000 Hz, 5cm/sec)
  • Weight: 7.2g
  • Compliance: 18 µ m/mN
  • Recommended tracking force: 1.8g
  •

Ortofon Quintet Red Moving Coil Cartridge

  • Good all-rounder and affordable entry into Moving Coil cartridges featuring aluminium cantilever with 8/18 µm elliptical stylus and copper internal coils
  • Frequency response is 20-20,000 Hz (±2.5dB) 25,000Hz (-3dB) with >21/14dB @ 1kHz/15kHz channel separation
  • Iinternal impedance (DC resistance) is 7Ω with output of 0.5 mV (@ 1000 Hz, 5cm/sec)
  • Compliance is 15 µm/mN and trackability at 315 Hz is 65 µm
  • Weight: 9g
  • Recommended tracking force: 2.3g
  •

Ortofon Quintet Blue Moving Coil Cartridge

  • Smoother sounding Moving Coil cartridge with aluminium cantilever and 8/18 µm nude elliptical stylus and pure 4-nines silver internal coils
  • Frequency response is 20-20,000 Hz (±2.5dB) 25,000Hz (-3dB) with >21/14dB @ 1kHz/15kHz channel separation
  • Iinternal impedance (DC resistance) is 7Ω with output of 0.5 mV (@ 1000 Hz, 5cm/sec)
  • Compliance is 15 µm/mN and trackability at 315 Hz is 70 µm
  • Weight: 9g
  • Recommended tracking force: 2.3g
  •

Ortofon Quintet Bronze Moving Coil Cartridge

  • Moving Coil cartridge with greater space and dynamics from aluminium cantilever and 8/40 µm nude 'Fine Line' stylus and pure 4-nines copper internal coils
  • Frequency response is 20-20,000 Hz (±1.5dB) 25,000Hz (-3dB) with >23/15dB @ 1kHz/15kHz channel separation
  • Internal impedance (DC resistance) is 5Ω (fewer coils) so slightly less output of 0.3 mV (@ 1000 Hz, 5cm/sec) compared to Red and Blue Quintet
  • Compliance is 15 µm/mN and trackability at 315 Hz is 80 µm
  • Weight: 9g
  • Recommended tracking force: 2.3g
  •

Ortofon Quintet Black S Moving Coil Cartridge

  • Features Sapphire cantilever with 6/50 µm nude Shibata stylus and gold plated 6-nines copper 'Ortofon Aucurum' internal coils
  • Frequency response is 20-20,000 Hz (±1.5dB) 25,000Hz (-3dB) with >23/15dB @ 1kHz/15kHz channel separation
  • Internal impedance (DC resistance) is 5Ω (fewer coils) so slightly less output of 0.3 mV (@ 1000 Hz, 5cm/sec) compared to Red and Blue Quintet
  • Compliance is 15 µm/mN and trackability at 315 Hz is 80 µm
  • Weight: 9g
  • Recommended tracking force: 2.3g
  •

Ortofon Quintet Mono Moving Coil Cartridge

  • Moving Coil cartridge with mono output from both sets of pins eliminating need for mono-specific equipmen. Aluminium cantilever and 8/18 µm nude elliptical stylus and pure 4-nines silver internal coils
  • Frequency response is 20-20,000 Hz (±2.0dB) 25,000Hz (-2dB)
  • Internal impedance (DC resistance) is 5Ω (fewer coils) so slightly less output of 0.3 mV (@ 1000 Hz, 5cm/sec) compared to Red and Blue Quintet
  • Compliance is 15 µm/mN and trackability at 315 Hz is 70 µm
  • Weight: 9g
  • Recommended tracking force: 2.3g
  •

Ortofon Cadenza Red Moving Coil Cartridge

  • Spacious deep soundstage, relaxed seamless sound from aluminium cantilever and 8/40 µm nude 'Fine Line' stylus and pure 4-nines copper internal coils
  • Frequency response is 20-20,000 Hz (+3dB/−1dB) 50,000Hz (-3dB) with >23/15dB @ 1kHz/15kHz channel separation
  • Internal impedance (DC resistance) is 5Ω with output of 0.45 mV (@1000 Hz, 5cm/sec)
  • Compliance: 12 µm/mN and trackability at 315 Hz is 80 µm
  • Weight: 10.7g
  • Recommended tracking force: 2.5g
  •

Ortofon Cadenza Blue Moving Coil Cartridge

  • Wide open soundstage, clarity, detail and speed from very thin ruby cantilever and 6/70 µm nude FG 70 stylus and pure 4-nines copper internal coils
  • Frequency response is 20-20,000 Hz (+2dB/−1dB) 50,000Hz (-3dB) with >23/15dB @ 1kHz/15kHz channel separation
  • Internal impedance (DC resistance) is 5Ω with output of 0.50 mV (@1000 Hz, 5cm/sec)
  • Compliance: 12 µm/mN and trackability at 315 Hz is 80 µm
  • Weight: 10.7g
  • Recommended tracking force: 2.5g
  •

Ortofon Cadenza Bronze Moving Coil Cartridge

  • A magnetic field stabilizing element(FSE) gives linearity for precision, impact and dynamics in a vast 3D soundstage. Uses a conical aluminium cantilever and 5/100 µm nude 'Ortofon Replicant 100' stylus and gold plated 6-nines copper 'Ortofon Aucurum' internal coils
  • Frequency response is 20-20,000 Hz (±1.5dB) 55,000Hz (-3dB) with >24/20dB @ 1kHz/15kHz channel separation
  • Internal impedance (DC resistance) is 5Ω with output of 0.40 mV (@1000 Hz, 5cm/sec)
  • Compliance: 12 µm/mN and trackability at 315 Hz is 80 µm
  • Weight: 10.7g
  • Recommended tracking force: 2.5g
  •

Ortofon Cadenza Black Moving Coil Cartridge

  • With a Boron cantilever, 6/50 µm nude Shibata stylus, and a Wide Range Damping (WRD) system, both low and frequencies are rendered with exceptional resolution, purity and dynamics. The soundstage is vast.
  • Frequency response is 20-20,000 Hz (+1.5dB/−0dB) 60,000Hz (-3dB) with >27/20dB @ 1kHz/15kHz channel separation
  • Internal impedance (DC resistance) is 5Ω with output of 0.33 mV (@1000 Hz, 5cm/sec)
  • Compliance: 16 µm/mN and trackability at 315 Hz is 90 µm
  • Weight: 10.7g
  • Recommended tracking force: 2.3g
  •

Ortofon Cadenza Mono Moving Coil Cartridge

  • A relaxed seamless sound optimized for old mono records is born from a cylindrical aluminium cantilever with nude 'Fine Line' stylus with
  • Frequency response is 20-20,000 Hz (+3dB/−1dB) 50,000Hz (-3dB)
  • Internal impedance (DC resistance) is 5Ω with output of 0.14 mV (@1000 Hz, 5cm/sec)
  • Compliance: 12 µm/mN and trackability at 315 Hz is 70 µm
  • Weight: 10.7g
  • Recommended tracking force: 2.5g
  •

Ortofon MC Windfeld Ti Moving Coil Cartridge

  • This technologically advanced cartridge has a SLM Titanium and stainless steel body to dampen unwanted vibrations combined with a boron cantilever and 5/100 µm nude 'Ortofon Replicant 100' stylus and gold plated 6-nines copper 'Ortofon Aucurum' internal coils. Both the field stabilizing element(FSE) and Wide Range Damping (WRD) system inincorporated. Sound is characterized by dynamic open sound with vivid midrange while resolving low level details.
  • Frequency response is 20-20,000 Hz (+2.0dB/−1dB) 60,000Hz (-3dB) with >27/20dB @ 1kHz/15kHz channel separation
  • Internal impedance (DC resistance) is 6Ω with output of 0.2 mV (@1000 Hz, 5cm/sec) thus requires a very high gain quality phono preamplifier
  • Compliance: 13 µm/mN and trackability at 315 Hz is 90 µm
  • Weight: 11.0g
  • Recommended tracking force: 2.3g
  •

Ortofon Verismo Moving Coil Cartridge

  • The body is wholly fabicated using Seleective Lazer Melting (SLM) to dampen unwanted vibrations combined with a diamond cantilever and a specially polished 5/100 µm nude 'Ortofon Replicant 100' stylus and gold plated 6-nines copper 'Ortofon Aucurum' internal coils. The cantilever suspension features a compound with Multi Wall Carbon Nano Tubes (MWCNT) for optimal balance between dampening and compliance. Sound reflects the advanced engineering.
  • Frequency response is 20-20,000 Hz (+2.0dB/−1dB) 60,000Hz (-3dB) with >25/20dB @ 1kHz/15kHz channel separation
  • Internal impedance (DC resistance) is 7Ω with output of 0.2 mV (@1000 Hz, 5cm/sec) thus requires a very high gain quality phono preamplifier
  • Compliance: 13 µm/mN and trackability at 315 Hz is 80 µm
  • Weight: 9.5g
  • Recommended tracking force: 2.6g
  •

Ortofon Xpression Moving Coil Cartridge

  • Combines precision and fluid dynamics from a fully SLM body with powerful neodymium magnet. A state of the art product with transparent sound reproduction
  • Frequency response is 20-20,000 Hz (+0.5dB/−1.5dB) 60,000Hz (-3dB) with >28/22dB @ 1kHz/15kHz channel separation
  • Internal impedance (DC resistance) is 4Ω with output of 0.3 mV (@1000 Hz, 5cm/sec) and should be used with a very high quality phono preamplifier
  • Compliance: 11 µm/mN and trackability at 315 Hz is 90 µm
  • Weight: 28g (no headshell required)
  • Recommended tracking force: 2.6g
  •

Ortofon LH2000 Headshell

  • Simple design made of solid aluminum that suits wide variety of cartridges such as the 2M series
  • Weight: 15.5g
  • Range of high quality headshell leads available separately
  •

Ortofon LH6000 Headshell

  • Made of solid magnesium with rounded front is styled to suit Cadenza, MC Windfield Ti, and other Ortofon cartridges
  • Weight: 13.5g
  • Range of high quality headshell leads available separately
  •

Ortofon LH9000 Headshell

  • Made with magnesium and carbon fiber resin for resonance elimination benefitting high end cartridges
  • Weight: 16.8g
  • Range of high quality headshell leads available separately
  •

Ortofon LH10000 Headshell

  • >Made of Aluminum alloy with Zinc and a scultured slit filled with TPE (Thermo-Elastic Polymer) for resonance elimination
  • Weight: 14.5g
  • Fitted with high purity pure silver and siver coated headshell leads
  • Azimuth adjustable
  •

Ortofon ST-7 Step- Up Transformer

  • Dual mono design with individual permalloy shielding for each R & L channel
  • Frequency response: 15-45,000 Hz (+0dB -2.5dB)
  • Cartridge impedance 2-60 Ω Gain: 24 dB @ 1 kHz
  • Output loading: 47 kOhm/200 pF
  •

Ortofon ST-70 Step-Up Transformer

  • Exceptional quality Lundahl ™ transformers with mu-metal shielding make for an exceptionally quiet, expansive, revelaing, accurate tonal balance and life-like presentation. Dual mono design
  • Internal jumpers offer two gain/impendance options:
    A) Cartridge impedance 5-50 Ohm Gain: 24 dB @ 1 kHz with 10-100,000 Hz freq response
    B) Cartridge impedance <10 Ω Gain: 30 dB @ 1 kHz with 10-80,000 Hz freq response
  • Output loading: 47 kOhm/200 pF
  •

Ortofon DS-3 Digital Stylus pressure guage

  • Aluminium measuring tab held at same height as vinyl record
  • Factory pre-calibrated for ±0.01g sensitivity, simple, and elegant way to set tracking force
  • Two AAA batteries required
  •
