AVIDHIFI products embody thoroughly researched engineering and the highest precision in-house manufacturing using the very best quality materials

AVIDHIFI's unifying theme across all of its products is to manage vibration energy, preserve information and dynamics, and address engineering requirements with the right matertials in the simplest approach for long term reliability and durability. These priniciples can be applied from cartridge to loudspeaker and the highest fidelity sound can not be obtainined without following them.

AVIDHIFI's facility near Huntingdon in the UK is equipped with large CNC milling, turning, and sophisticated PCB assembly machines operated by highly experienced personnel producing highest quality steel, brass, aluminum, Delrin and nylon components not just for their own use, but also for other audio and non-audio related companies recognizing manufacturing as one of AVIDHIFI's core competencies. Making just about everything in house, AVIDHIFI can afford to be generous with materials in their products - such as the impressive inverted bearing used in all of the turntables - a far cry from common standard bearings.

Take the amount of engineering concepts and precision in an AVIDHIFI turntable. To reduce needle talk, the body and yoke of its range of cartridges are precion machined in house. The headshell, tone arm tube and bearing, mounting in AVIDHIFI's tonearms are all designed to transfer unwanted resonance energy away from the stylus. The platter, clamp and bearing transfer unwanted resonance energy away from the record (the stlyus will loose information if the record itself is vibrating) into the solid metal plinth which channels away the artifactual energy and the plinth itself is isolated from environmental influences. By using high torque motors with dedicated DSP power supplies, dual belts, precision main bearing (self lubricating for life - if a bearing has to be anually greased, it already has too much play) drive the record on the platter so all the transient information is retained.

In AVIDHIFI loudspeakers, vibration energy in the driver basket is dealt with. In amplifiers oversized transformers and large capactiance don't restrain the dynamic range while preamplifiers use the highest quality volume control and switching relays available so you hear all the details.

By creating a whole solution, there are no weak links in a complete AVIDHIFI system and quality control is maintained throughout. By preserving the energy, drama and the smallest nuances, records played on an AVIDHIFI come to life.

Model:
AVIDHIFI Ingenium turntable

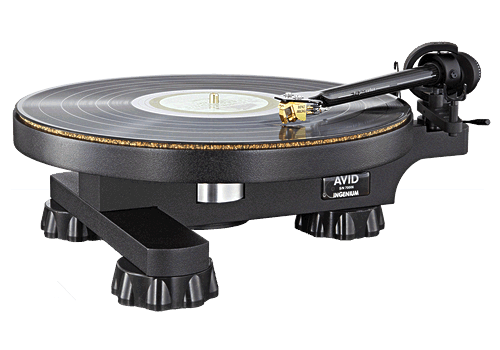

AVIDHIFI INGENIUM P&P Record Player

  • AVID Hi-Fi's entry level turntable offers far more than entry level performance. The vibration transfer clamp shunts resonance energy into the inverted stainless steel bearing with tungsten carbide & sapphire trust point to be dissapated in the solid aluminum t-shapped main chasis
  • A 12 mNm mains supplied ac synchronous motor drives a 2.5 Kg platter via a high quality single belt. A 5.5 Kg aluminum platter is available as an optional upgrade
  • Speed control is manual
  • Supplied with AVID TA-1 tonearm arm and CA-1 cartridge
  • Overall dimensions (wdh): 14.6" x 12.0" x 5.1" (370x305x130mm) Weight is 13 lbs
  • More information on the AVID INGENIUM P&P record player
  • Price: $1,999, limited edition white $2,149

AVIDHIFI DIVA II MK2 Turntable

  • AVID Hi-Fi's DIVA II MK2 turntable has an ultra-rigid one-piece triangular solid aluminum chassis with three Tri-layer elastomer suspension supports to better isolate the turntable from external influence
  • A 12 mNm ac synchronous motor, powered by an external power supply, drives a 5.5 Kg precision machined aluminum platter with composite cork mat
  • The vibration transfer clamp shunts resonance energy from the record itself when played into the inverted stainless steel bearing with tungsten carbide & sapphire trust point
  • Manual speed control by moving belt
  • Drilled for AVIDHIFI & SME tonearms, other adapters to order
  • Overall dimensions (wdh): 17.7" x 15.4" x 5.5" (450x390x140mm) Weight is 26 lbs excl. P.S.U.
  •

AVIDHIFI DIVA II SP Turntable

  • AVID Hi-Fi's DIVA II SP turntable has an ultra-rigid one-piece triangular solid aluminum chassis with three Tri-layer elastomer suspension supports to better isolate the turntable from external influence
  • A high torque 12 mNm motor, powered by an external DSP vari-speed power supply (from Volvere), drives a 6.3 Kg precision machined aluminum platter with composite cork mat
  • The vibration transfer clamp shunts resonance energy into the inverted stainless steel bearing with tungsten carbide & sapphire trust point
  • Electronic speed control enables dual belt drive to platter
  • Drilled for AVIDHIFI & SME tonearms, other adapters to order
  • Overall dimensions (wdh): 17.7" x 15.4" x 5.5" (450x390x140mm) Weight is 28 lbs excl. P.S.U.
  •

AVIDHIFI VOLVERE SP Turntable

  • AVID Hi-Fi's VOLVERE SP turntable has an ultra-rigid one-piece triangular solid aluminum chassis with three point vertical spring suspension with o-ring lateral suspension isolates the turntable from external influences above the 3.2Hz vertical and 4.5Hz lateral cut off frequency
  • A high torque 55 mNm torque motor, powered by an external DSP vari-speed power supply, drives a 6.7 Kg precision machined aluminum platter with composite cork mat
  • The vibration transfer clamp shunts resonance energy into the inverted stainless steel bearing with tungsten carbide & sapphire trust point
  • Electronic speed control enables dual belt drive to platter
  • Drilled for AVIDHIFI & SME tonearms, other adapters to order
  • Overall dimensions (wdh): 16.7" x 14.6" x 8.1" (425x370x205mm) Weight is 28 lbs excl. P.S.U.
  •

AVIDHIFI SEQUEL SP Turntable

  • AVID Hi-Fi's SEQUEL SP turntable is the turbo-charged version of the popular Volvere turntable but is actually quite close to the Acutus in performance
  • A high torque 140 mNm torque motor (from Acutus), powered by an external DSP vari-speed power supply (from Acutus), drives a 6.7 Kg precision machined aluminum platter with composite cork mat
  • The vibration transfer clamp shunts resonance energy into the inverted stainless steel bearing with tungsten carbide & sapphire trust point
  • Electronic speed control enables dual belt drive to platter
  • Drilled for AVIDHIFI & SME tonearms, other adapters to order
  • Overall dimensions (wdh): 16.7" x 14.6" x 8.1" (425x370x205mm) Weight is 28 lbs excl. P.S.U.
  •

AVIDHIFI ACUTUS CLASSIC Turntable

  • AVID Hi-Fi's iconic ACUTUS Classic turntable has a heavier platter with a very specialized mat and a further refined suspension than the Volvere (2.5Hz vertical and 4.5Hz lateral cut off frequency)
  • A high torque 140 mNm motor, powered by the 'classic' external DSP vari-speed power supply, drives a 10.0 Kg precision machined aluminum platter with bespoke polymer mat
  • The vibration transfer dual-stage clamp shunts resonance energy into the inverted stainless steel bearing with tungsten carbide & sapphire trust point
  • Electronic speed control enables dual belt drive to platter
  • Drilled for AVIDHIFI & SME tonearms, other adapters to order
  • Overall dimensions (wdh): 18.1" x 15.7" x 8.3" (460x400x210mm) Weight is 42 lbs excl. P.S.U.
  • AVID Hi-Fi's iconic ACUTUS Dark Iron turntable has a dark finish, this Acutus platter with cork mat (optional resin Platter mat) with a sigle-action clamp
  • More information on the AVID ACUTUS CLASSIC turntable
  •

AVIDHIFI PELLAR Phono Stage

  • High quality single box phono stage with internal regulated 25VA toroidal power supply
  • Resistive loading is 47k or custom(loading plugs). 100pF capacitance loading
  • Gain options are 48dB - 60dB - 70dB with noise (A weighted) of < -81dB MM, < -67dB MC and < 0.001% distortion
  • RIAA: 5Hz - 70kHz +/- 0.5dB
  • Overall dimensions (wdh): 4.7" x 9.0" x 2.8" {120x230x70mm) Weight is 3.5 lbs
  •

AVIDHIFI PULSUS Phono Stage

  • High quality two box phono stage with external regulated 35VA toroidal power supply
  • Resistive loading is 100Ω - 300Ω - 500Ω - 1kΩ - 5kΩ - 10kΩ - 47kΩ or custom(loading plugs). 100pF - 200pF - 500pF capacitance loading
  • Gain options are 48dB - 60dB - 70dB with noise (A weighted) of < -81dB MM, < -67dB MC and < 0.001% distortion
  • RIAA: 5Hz - 70kHz +/- 0.5dB
  • Overall dimensions (wdh): 4.7" x 8.7" x 2.8" (120x220x70mm) Weights: Control Unit 2.2 lbs, PSU 4 lbs
  •

AVIDHIFI PELLERE Phono Stage

  • This high quality two box phono stage uses a passive RIAA circuit to maintain linearity of the signal. Extermnal power supply uses regulated 300VA toroidal power supply (more than most 50 watt integrated amps!)
  • Resistive loading is 100Ω - 300Ω - 500Ω - 1kΩ - 5kΩ - 10kΩ - 47kΩ or custom(loading plugs). 1.5nF - 10nF - 20nF- 100pF - 200pF - 500pF - capacitance loading
  • Gain options are 40dB - 48dB - 60dB - 70dB with noise (A weighted) of < -81dB MM, < -67dB MC and < 0.001% distortion
  • RIAA: 5Hz - 70kHz +/- 0.5dB
  • Overall dimensions (wdh): 11.4" x 9.5" x 3.9" (290x240x100mm) Weights: Control Unit 8.4 lbs, PSU 14 lbs
  •

AVIDHIFI PULSARE MK2 Phono Stage

  • Highest quality two box phono stage is fully balanced throughout and uses a passive RIAA circuit to maintain linearity of the signal. External power supply uses a double regulated 300VA toroidal power supply (more than most 50 watt integrated amps!)
  • Resistive loading is 100Ω - 300Ω - 500Ω - 1kΩ - 5kΩ - 10kΩ - 47kΩ or custom(loading plugs). 1.5nF - 10nF - 20nF- 100pF - 200pF - 500pF - capacitance loading
  • Gain options are 40dB - 48dB - 60dB - 70dB with noise (A weighted) of < -81dB MM, < -67dB MC and < 0.001% distortion
  • RIAA: 5Hz - 70kHz +/- 0.5dB
  • Overall dimensions (wdh): 11.4" x 9.5" x 3.9" (290x240x100mm) Weights: Control Unit 8.4 lbs, PSU 14 lbs
  •

AVIDHIFI IONIC Cartridge

  • Made with the same precision milled aerospace grade aluminium body (fabricated by AVID) with extra long cantilever as the more expensive models offering a good measure of everything you want from vinyl
  • With a compliance of 8.5 x 10 -6cm/dyne, the aluminum cantilever and solid diamond elliptical 7.6µm x 15.5µm radius stylus gives a frequency response of 15-25,000 Hz with 25dB @1kHz channel separation
  • The IONIC weighs 9.1g, has an internal impedance is 4.8Ω/1KHz and and has an output of 0.32 mV from Alnico magnet
  • The IONIC has great trackability due to extra-long cantilever and the recommended tracking force is 2.0g (±0.2g)
  • Benefits from a purpose-designed stylus guard
  •

AVIDHIFI BORON Cartridge

  • Near reference cartridge made with precision milled aerospace grade aluminium body (fabricated by AVID) and extra long boron cantilever with a solid diamond stylus of elliptical radius 7.6µm x 15.5µm
  • With a compliance of 8.5 x 10 -6cm/dyne, the boron cantilever and solid diamond Micro-ridge 3µm x 70µm radius stylus gives a frequency response of 10-45,000 Hz with 28dB @1kHz channel separation
  • The BORON weighs 9.1g, has an internal impedance is 4.8Ω/1KHz and and an output of 0.32 mV from Alnico magnet
  • The BORON has excellent trackability due to cantilever material and its length and the recommended tracking force is 2.0g (±0.2g)
  • Excellent information retrieval with greatly reduced surface noise and needle talk for thoroughly enjoyable full sound. Includes purpose-designed stylus guard
  •

AVIDHIFI RUBY Cartridge

  • Acclaimed reference cartridge where tracking ability, transparency and unparalleled resoution & dynamics come together for a superlative hard to beat listening experience
  • With a compliance of 8.5 x 10 -6cm/dyne, the ruby cantilever and solid diamond Micro-ridge 3µm x 70µm radius stylus gives a frequency response of 10-50,000 Hz with 298dB @1kHz channel separation
  • The RUBY weighs 9.1g, has an internal impedance is 4.8Ω/1KHz and and has an output of 0.32 mV from Alnico magnet
  • Trackability is excellent due to cantilever material and its length and the recommended tracking force is 2.0g (±0.2g)
  •

AVIDHIFI ALTUS Tonearm

  • This hand-built thoughtfully designed effective medium mass (15g) tonearm pushes the performance level after a good many prototypes over many years!
  • Rigid bearing with extremely high precision bearing shafts and ball race bearings preserves the highest sound quality while a thick walled aluminium arm tube tranfers vibration away from the cartridge. The headshell is optimized for sound quality and natural vocals. Effective length is 233mm
  • Built-in progressive bias compensation so groove wall pressure is balanced on both sides from the outer to inner grooves
  • Mounting distance/offset/overhang: 216mm/23°/17mm
  • Comes with AVID HiFi right angled 5 Pin DIN connector detachable 1.3m low capacitance phono cable(fully balanced version also available)
  •

AVIDHIFI NEXUS Tonearm

  • AVID HiFi's highest level of craftmanship is revealed in this superlative designed 18g (effective mass) hyper rigid GR9 1.3mm Titanium arm tube that resists bending or torsion that would cause loss of audio information
  • The critical rigid bearing with extremely high precision bearing shafts and ball race bearings are set with great precision preserving the highest sound quality. The headshell is optimized for sound quality and natural vocals. Effective length is 233mm
  • Built-in progressive bias compensation so groove wall pressure is balanced on both sides from the outer to inner grooves
  • Mounting distance/offset/overhang: 216mm/23°/17mm
  • Comes with AVID HiFi right angled 5 Pin DIN connector detachable 1.3m low capacitance phono cable(fully balanced version also available)
  •

AVIDHIFI ACCENT Integrated Amplifier

  • This brilliant 70 watt high performance integrated amplifier with phonostage and remote control has a 617VA toroidal transformer, 40,000 uF capacitance reservoir - a great deal more than most integrated amplifiers at this power and price level
  • The frequency response is 5Hz - over 80kHz +/- 1dB with < 0.003% distortion (THD 80% power 8Ω 1KHz)
  • The built in MM/MC phonostage is based on AVID's Pellar model and there is also a capable headphone socket offering a max output of 10 V into 600Ω
  • There are four single-ended RCA pairs for analog sources with 340mV sensitivity for full volume with -100dB(A weighted 50W ref 1v input) noise.
  • Instead of the usual plastic remote you get a beautifully simple machined metal one
  • Dimensions (wdh): 18.5" x 16.1" x 4.3" {470x410x110mm) Weight is 14.5 Kg (32.0 lbs)
  •

AVIDHIFI INTEGRA Integrated Amplifier

  • A 750VA toroidal transformer and 88,000 uF capacitance reservoir makes this 90 watt high performance integrated amplifier drive all but the most demanding speakers
  • The frequency response is 5Hz - over 80kHz +/- 1dB with < 0.003% distortion (THD 80% power 8Ω 1KHz)
  • The built in MM/MC phonostage is based on AVID's Pellar model and there is also a capable headphone socket offering a max output of 10 V into 600Ω
  • There are four single-ended RCA pairs for analog sources with 340mV sensitivity for full volume with -100dB(A weighted 50W ref 1v input) noise
  • Dimensions (wdh): 18.5" x 19.5" x 6.1" (470x495x155mm) Weight is 22.9 Kg (50.5 lbs)
  •

AVIDHIFI SIGSUM Integrated Amplifier

  • AVID HIFI's largest integrated amplifier houses a 1.1 kVA toroidal transformer, 132,000 uF capacitance reservoi and a Pulsus based phonostage with its own dedicated transformer
  • Power output is 110 watt and the frequency response is 5Hz - over 80kHz +/- 1dB with < 0.003% distortion (THD 80% power 8Ω 1KHz)
  • There are two balanced XLR pairs and two single-ended RCA pairs for analog sources with 340mV sensitivity for full volume with -100dB(A weighted 50W ref 1v input) noise
  • Volume is controlled by an what is generally regarded as the world's best analog volume control (ALPS RK50 - selected after numerous trials of other volume attenuation methods) and this preserves every detail in the source signal
  • Headphone max output: 10 V into 600Ω
  • Dimensions (wdh): 18.5" x 19.7" x 7.5" (471x500x190mm) Weight is 31.2 Kg (68.7 lbs)
  •

AVIDHIFI Isorak equipment support

  • AVID HIFI's Isorak modular support consists of 30mm MDF shelveswith vibration diffusion slots painted with a durable paint finish, solid aluminium poles and steel ball bearing isolation points.
  • Available pole lengths: 5.3, 6.5, 8.1, 9.6, 12.0" (135,165,205,245,305mm)
  • Max load per shelf is 100 Kgs (220 Lbs)
  • Dimensions (wdh): 25.5" x 22.0" (649x560mm); useable area: 20.9" x 19.7" (530x500mm)
  • Oak or Black shelf finishes, black or silver pole finishes
  •
